Granulation Section

Design is cGMP – Current Good Manufacturing Practices compliance.
All contact parts AISI 316 & non contact parts AISI 304.
Single piece construction with Integrated retarding expansion chamber cum filter bag housing
Batch type dryer with available capacity 30 kg to 500 kg. Batch size
Inlet Air handler with Air Filter- Micro, HEPA and Heat Exchanger Steam or Electric.
Exhaust air blower with dynamic balance fan.
Built in Explosion vents and isolation valve protect equipment.
Automatic Temperature controls for Inlet Air and Process cycle time controls.
Washable filter media, FDA approved.

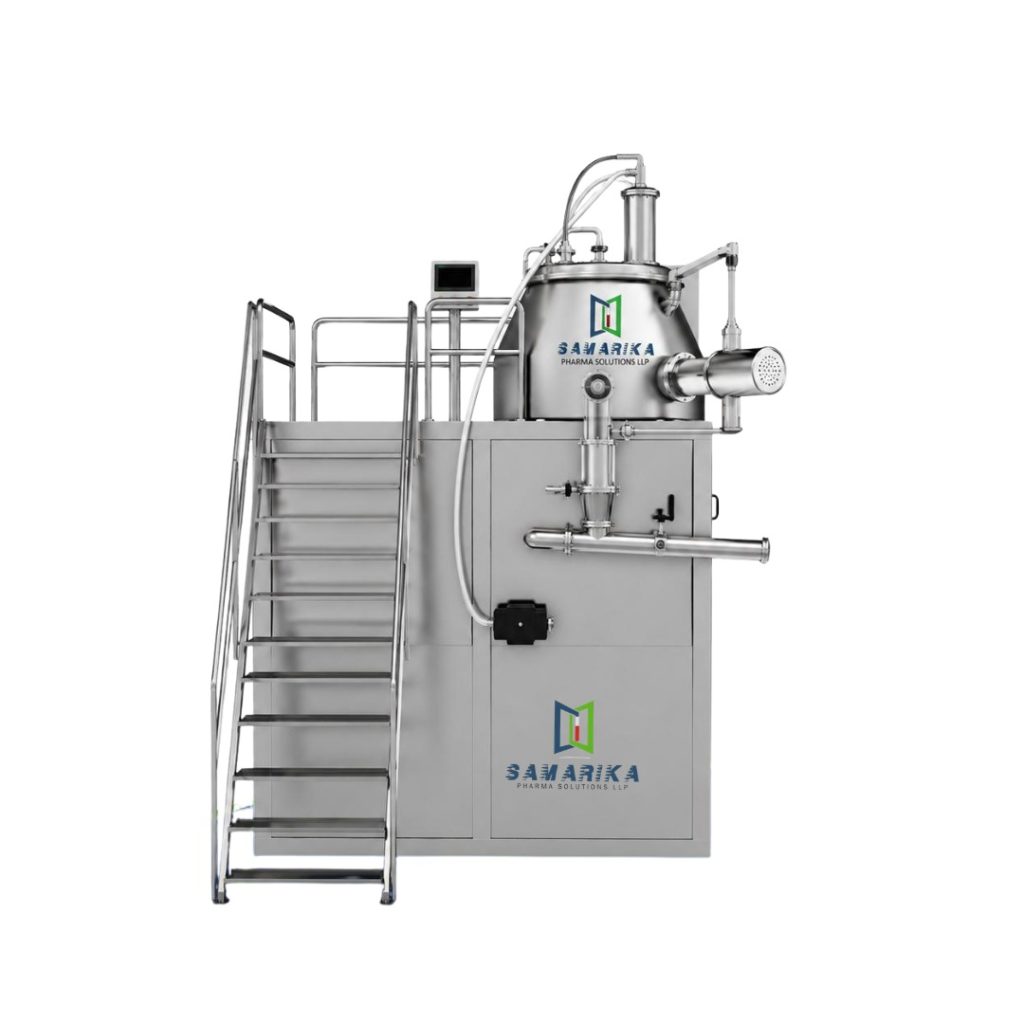

High speed mixing & granulating
Design is cGMP – Current Good Manufacturing Practices compliance
All Product contact parts AISI 316 & non contact parts AISI 304.
Automated maxing and granulating process in single bowl.
High Precision mixing and granulation with Short Batch Time, Problem free Cleaning and Residue Free Discharge.
Unique design with four arm mixing impeller with blade angle to pushing product radically outward.
Chopper blade designed to cuts lumps and make granules.
Flush fitting discharge plug is electro pneumatically operated.

Design is cGMP – Current Good Manufacturing Practices compliance
All Product contact parts AISI 316 & non contact parts AISI 304.
Octagonal shape product container for Ideal dry mixer for lubrication of granules and homogenization mixing of multiple batches in to single batch.
Available Capacity model in octagonal blender 25 kg to 5000 kg batch size.
Enclosed rigid drive with reduction gear box and motor.
“A” type rigid structure of the machine with two sides resting of product container.
Product container having discharge with butterfly valve and man hole.
Charging hole with hinged lid with seal for charging and cleaning.
Safety reeling provided for rotating area of product container.
Fixed baffles provided for lumps braking.
Electric controls panel with cycle time.

All Product contact parts AISI 316 & non contact parts AISI 304

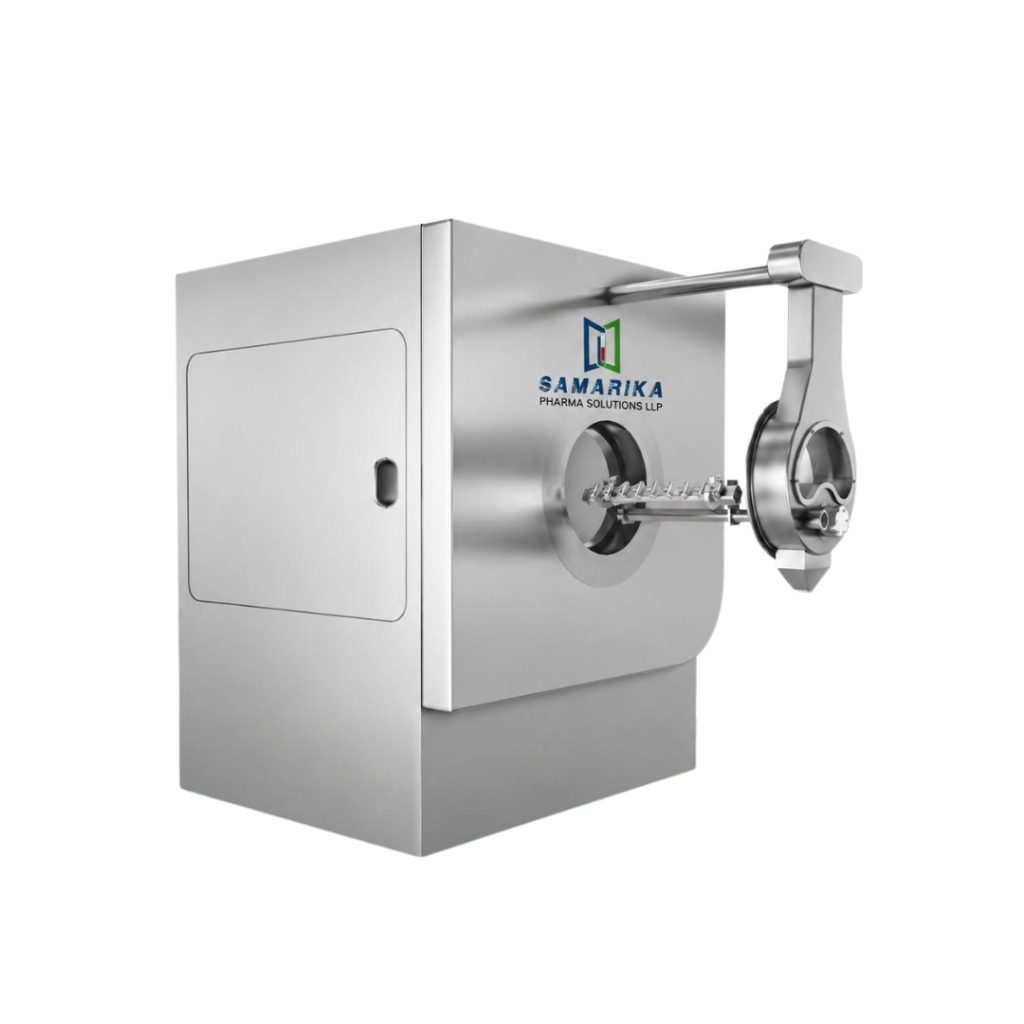

High speed milling, granulating, pulverizing, mixing and size reduction of wet & dry material.
Output capacity 50 Kg to 200 Kg per hour..
Easy removable contact parts for cleaning & inspection.
Easy Mobility.
Variable force by swing better having knife & impact edges are rotating within screen.
Direction of beaters can be changed by forward- reversible switch.
Various combinations of perforated sieves & wire mesh.

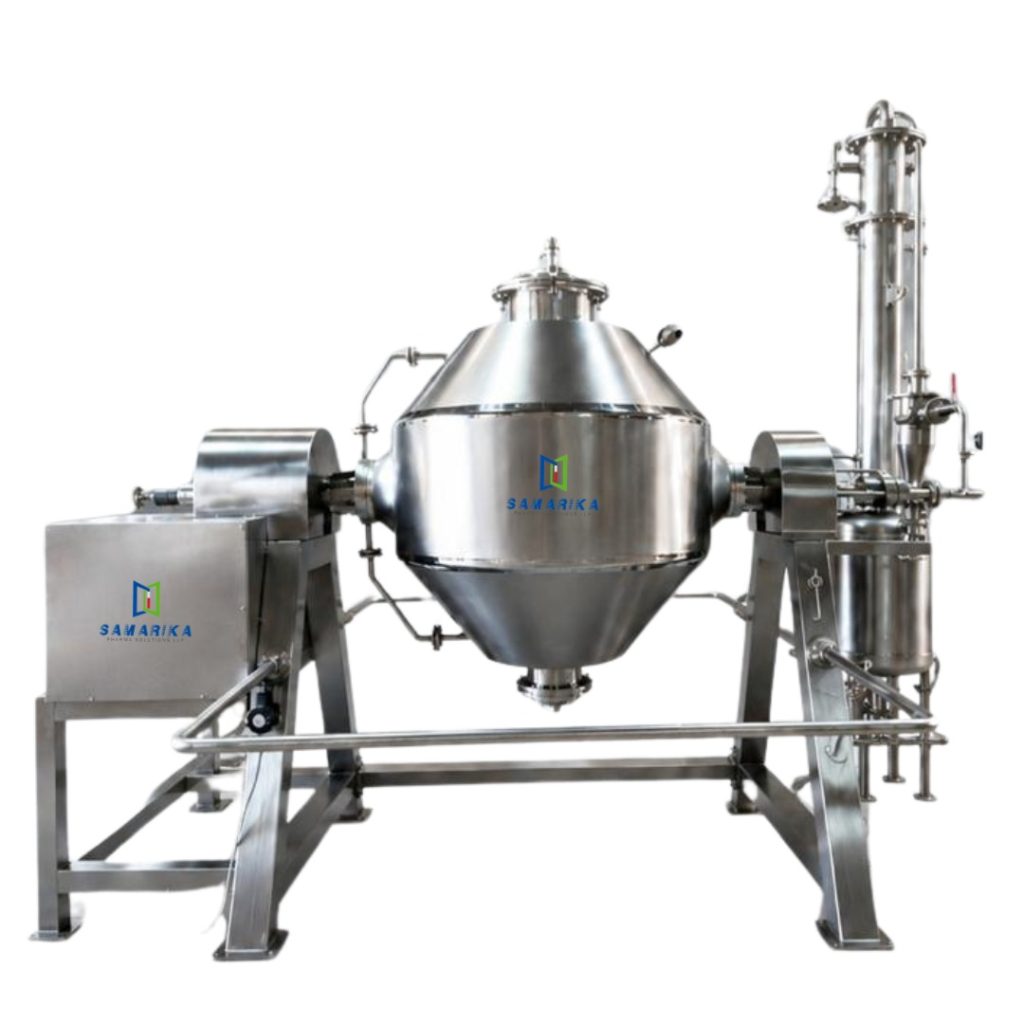

The conical shape of both ends enables uniform mixing and easy discharge.
All contact parts are made out of SS304/316(as per customer requirement) quality material.
Two nos. of safety road will be provided at back side With Limit Switch. ( One LH side & one RH side )
A suitable size of butter fly valve at one end of the cone is provided for material discharge & hole with an open able cover is provided at another end for material charging & cleaning.
One shaft with 04 nos. of fixed buffers with mirror polished provided inside the cone.
Cone will be mirror polished from the inside & outside & structure will be matt polished.
Panel fabricated from SS304 material with facility of three phase indication, D.O.L. tarter, digital timer & Amp. Meter

Design is cGMP – Current Good Manufacturing Practices compliance.
All contact parts AISI 316/304 & non contact parts AISI 304.
Conventional coating system for manual film coating and sugar coating.
Machine is designed with fabricated structure fitted with SS enclosure which makes simple, cleanable outside covering and mounted on anti vibration pad.
Closed powerful pan drive with reduction gearbox and motor by variable speed pulley.
Movable hot air blowing system with electric heater.
Easy to replace polishing pan and other size coating pan.
