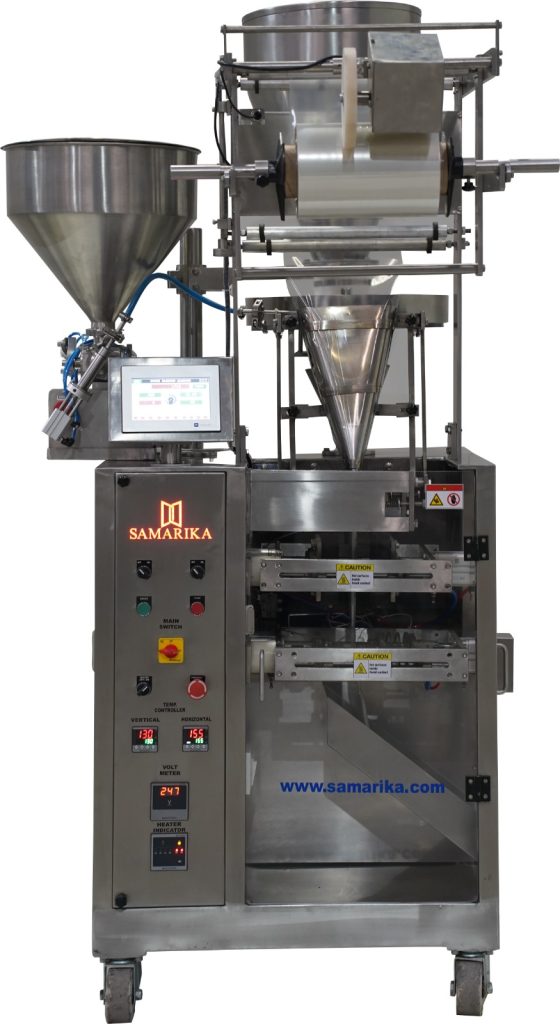

Pouch Packing Machine
- APPLICATION
Suit to granule, Granules, Tea, Pharmaceuticals, Nutraceuticals, etc. - PACKAGING
Heat sealable foil/Laminated / Paper foil.TECHNICAL SPECIFICATION
- Model : SAMPACK combo model
- Filling System : Adjustable Telescopic Disc, Volumetric cup, Piston filling
- Filling Accuracy : +/- 3% (Depend on changing chainpart)
- Type of Seal : Centre/Three / Four seal
- Film Range : 1 gm up to 250 gm
- Packging Material : Heat Suitable Laminated Films
- Pouch Dimensions : Width 25-160mm
- Power Requirement : 240v Single Phase
- Cutting Type : Plain cutting/ Zig zag cutting
- Compressed Air Required : 6CFM @ 6Bar (3Hp Compressor)
- Production Output : 15-50 Pouches Per Minute (Depend on Nature & Quality of Product)
- Dimension And Total Weight : L900xW1500×H2100mm

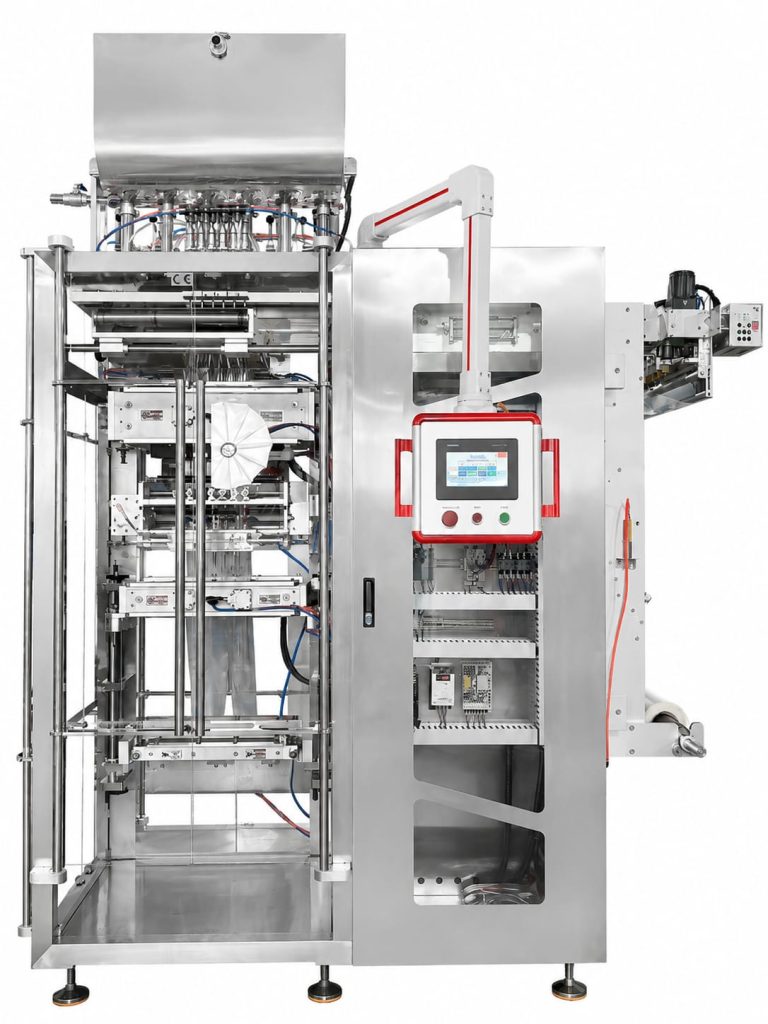

Multi Lane Four/Three side/Center Stick Sealing Liquid Packing Machine
- APPLICATION
Suit to granule : ketchup, sauce, honey, shampoo, cream, jelly, etc - PACKAGING
Heat sealable foil/ Laminated / Paper foil. - TECHNICAL SPECIFICATION
Model : SAMPACK
Track Number : 4-6 (Track)
Filling Method : Peristaltic pump/ Piston pump
Output Speed : 30-45Pouch Cut Per/Min.(According to the material condition)
Film Width And Thickness : Max:720mm.0.06-0.1mm
Sachet Size : L:45-140mm W:35-120mm ( Customized Bag Length)
Sealing Type : Four sides sealing
Cutting Type : Plain cutting / Zig zag cutting
Air Requirement : 6CFM @ 6Bar (3Hp Compressor)
Power : АC380AC220V Single phase , 50-60HZ
Dimension And Total Weight : L1900xW1500xH2600mm-1000kg

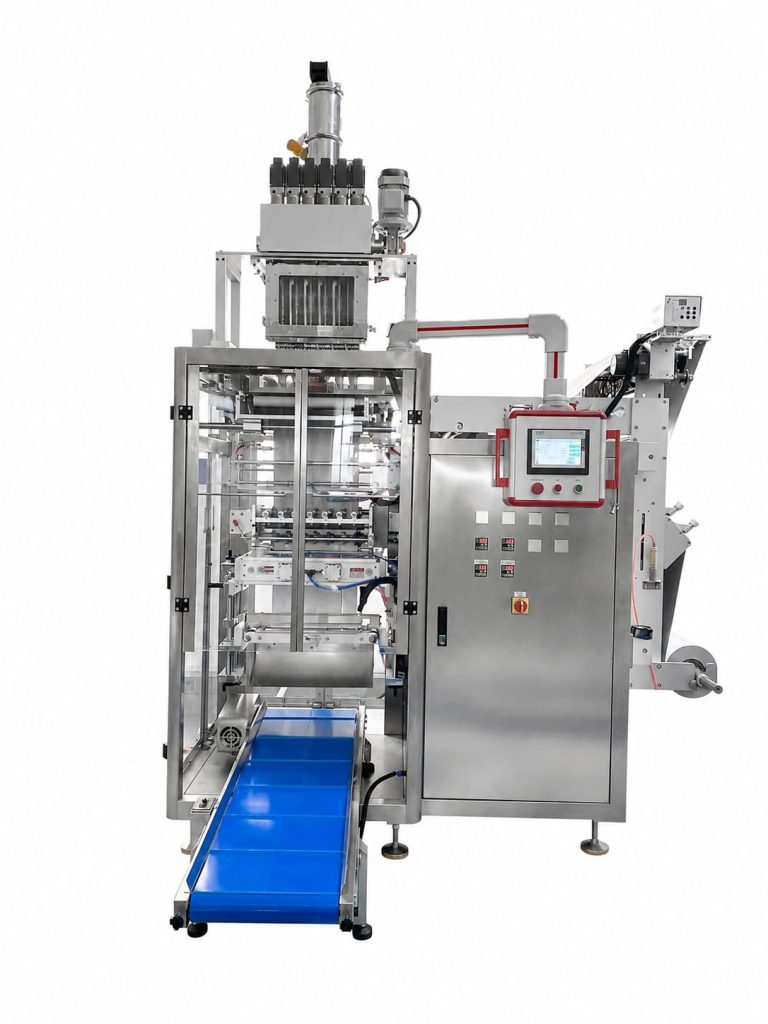

Mutli Track Pouch Packing Machine
- Multi Task Pouch Packing machine is designed for automatically forming, filling, sealing and cutting bags with powder products such as milk powder, flour, spices, coffee, protein powder, seasoning etc
- FEATURES
Fully automatic operation
High accuracy dosing
Suitable for various powder products
Easy to operate and maintain
Stainless steel construction
Customizable bag size and filling range - TECHNICAL SPECIFICATION
Bag Type : Pillow bag/Gusset bag (optional)
Filling Range : 10g – 1000g (customizable)
Bag Width : 50 – 250 mm
Bag Width : 50 – 400 mm
Packing Speed : 20- 60 bags/min (depending on product and weight)
Power Supply : 220V/380V , 50/60Hz, 3 Phase
Power Consumption : 4 – 6 kW
Air Consumption : 0.6 – 0.8 MPa
Machine Size : Approx. 1500(L) x 300(W) x 2300(H) mm
Machine Weight : Approx. 600 – 800 kg
